Products are used in various CNC machining centers, CNC lathes, automatic machine tools, instrument machine tools and various milling machines and lathes, as well as in the fields of mechanical processing such as automobiles, machinery, ships, and aviation.
End-to-end Services
The company has experienced technical research and development personnel who can produce complex product samples based on samples or drawings.
Complete Process System
Dezhou Newrgy Machinery Co.,Ltd it is an enterprise specializing in the production of machine tool accessories and precision machinery.

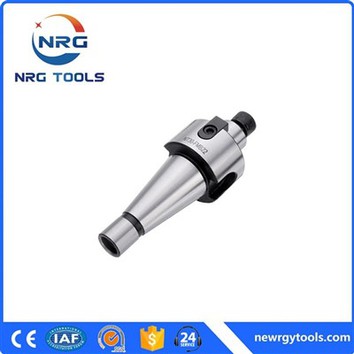

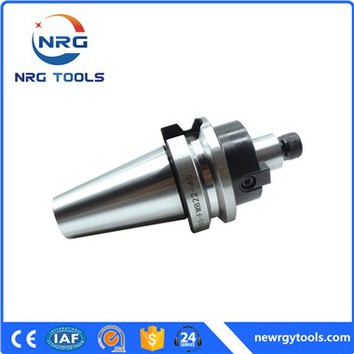

What is FMB Face Mill Holder?
FMB Face Mill Holders are precision-engineered tools used in milling operations, particularly for heavy-duty face milling applications. These holders are designed to securely attach cutting tools, known as face mills, to milling machines. The primary function of an FMB holder is to provide a stable and rigid interface between the machine spindle and the cutting tool, ensuring accurate and efficient material removal.
Advantages of FMB Face Mill Holder
FMB Face Mill Holder holders is a precision tool that can provide stable and accurate cutting performance for high-speed and precision machining applications. This product is designed for milling machines and CNC machines that require a secure and reliable hold on the end mills. The tool holder is made to hold the end mill firmly and securely and keep it from slipping, rotating, or vibrating during the machining process. This article will introduce the advantages, applications, and precautions of end mill tool holders.
FMB Face Mill Holder holders has many advantages that make it one of the best choices for CNC machining. One of the main advantages of the product is its high accuracy. The tool holder is made with precision materials and is designed to hold the end mills accurately. This ensures that the machine produces high-quality parts that meet the required tolerances.
Another advantage of end FMB Face Mill Holder is its high stability. The tool holder is designed to prevent the end mill from slipping or vibrating during the machining process. This is important because it ensures that the machine produces parts that are consistent and accurate. The tool holders are made with high-strength materials, which increases their durability and reduces wear and tear.
When using FMB Face Mill Holder, there are some precautions that users need to follow to ensure that the product performs as expected. Here are some precautions to keep in mind:
Before using the tool holder, inspect it for signs of wear or damage. Do not use a tool holder that is damaged or has worn out.
Ensure that the FMB Face Mill Holder is properly installed in the tool holder and securely tightened. Loose end mills can lead to poor machined parts or even accidents.
Make sure that the spindle and the tool holder are clean and free of debris. This will ensure that the tool holder and end mill perform at their best.
Do not exceed the recommended speed and feed rates for the end FMB Face Mill Holder. This can lead to damage to the tool holder, end mill, or machine.
FMB Face Mill Holder is a sequence of systematic operations aimed at effectively sculpting a workpiece’s surface. Here’s an overview of the normal process:
Workpiece Setup: The first step is to secure the workpiece firmly onto the machine table. It is critical to guarantee adequate positioning and secure fastening to avoid unwanted movement during milling.
Machine Alignment: After the workpiece has been secured, the milling machine or machining center must be positioned. Alignment is crucial here to guarantee that the cutting tool remains perpendicular to the workpiece surface.
Adjusting Speed and Feed Rate: Before beginning the milling operation, it is critical to fine-tune the spindle speed and feed rate. These parameters control the speed and precision of material removal and must be tuned for efficiency and quality.
Beginning Machining: Once the machine and workpiece are properly set up, the milling operation can begin. This phase often entails following pre-programmed instructions and guiding the cutter through the material to obtain the required form and characteristics on the workpiece surface.
By methodically following these processes, machinists may ensure smooth and accurate face milling operations, resulting in precise workpiece geometries that meet design specifications.
Tools Used in FMB Face Mill Holder
In FMB Face Mill Holder, there are different types of tools used to shape surfaces:
Flat End Mills
These are like versatile pencils with flat bottoms. They’re great for making flat surfaces very precisely. People often use them for regular face milling jobs.
Shell Mills
They’re big and strong, perfect for quickly covering large areas. They often have parts that can be easily replaced, which helps keep them working efficiently.
Indexable Face Mills
They have little parts that can be swapped out when they wear down. This makes them flexible and long-lasting. You can use them on different materials and for different finishes.
Fly Cutters
Fly cutters are simple and effective for making surfaces super smooth. They might not be the fastest, but they’re great for fine finishing touches.
High-Feed Cutters
They’re designed to remove material super fast. They’re especially good for rough jobs or when you’re working with tough materials.
Carbide Cutters
They’re incredibly tough and can handle high heat without losing their edge. That makes them perfect for fast jobs and hard materials.
High-Speed Steel (HSS) Cutters
They might not be as tough as carbide, but they’re strong and can handle a variety of tasks.
TiAlN (Titanium Aluminum Nitride) or TiCN (Titanium CarboNitride) Coatings
They make them harder, reduce friction, and help them last longer.
Areas of Application of FMB Face Mill Holder
Leveling Surfaces: It’s great for making surfaces flat and even, whether it’s planks, beams, or blocks of wood. This is useful for creating semi-finished products from raw wood or even repurposing old wood from things like roof trusses.
Shaping Workpieces: It can be used to shape workpieces, like creating specific patterns, holes, or pockets on a surface. This versatility makes it handy for various woodworking tasks.
Optimizing Products: During manufacturing, face milling can smooth out uneven surfaces, like glued connections in wood, making them flat again. This helps improve the overall quality of the product.
Formatting Workpieces: Another task it can handle is formatting irregularly shaped workpieces, ensuring they have exact right angles and edges. This is achieved by locking the guide rails to achieve precise angles.
Handling Tree Slices: Unlike traditional planers that can cause issues with the grain, face milling is better suited for leveling tree slices or end grain surfaces. It works vertically, avoiding chipping or cracks, regardless of the grain direction.
Tips To Choose Fmb Face Mill Holder Tools
Consider the Workpiece Material: Different materials require different types of milling tools. For hard materials like steel, opt for carbide bits. For softer materials like aluminum, high-speed milling tools are suitable.
Select the Appropriate Tool Type: Use shell mills for harder surfaces as they have the right cutting-edge design for this purpose. End mills, with their multiple cutting teeth, are great for intricate designs.
Match the Tool to Material Hardness: Delicate or softer materials should be milled using fly cutters because they are designed for lower speeds and gentler cutting.
Entering Angle: Typically, an entering angle between 45 to 90 degrees works well, but there can be exceptions based on specific requirements.
Consider CNC Machining for Durability: If the durability of the cutting edge is crucial, consider using CNC machining instead of manual face milling.
Align Machine Speed with Spindle Speed: Ensure that the machine speed is compatible with the spindle speed to maintain tool integrity and prevent damage.
Avoid Face Milling Holes and Slots: To prevent issues like exit and reentry marks, avoid face milling holes and slots. It’s better to use specialized tools for such tasks.
General Fmb Face Mill Holder Maintenance
Bores
Keep the bore of the tool holders free from grease and dust. A clean bore ensures a precise fit and maximizes the tool holder's gripping efficiency.
Use Stop Screws for Length Adjustment
When adjusting the length of the tool holder, always use stop screws to prevent overextension and potential damage to the holder or spindle.
Maintenance Accessories
Consider using spindle plugs and spindle wipers to protect the spindle from contamination and to maintain a clean environment for tool changes.
Clamping Length and Adjustment
For efficient gripping, ensure that the minimum clamping length is met, especially for hydraulic chucks, shrinkers collet chucks, etc. Refer to the manufacturer's catalog for the right dimension or recommended clamping lengths.
Torque Wrenches and Clamping
Use torque wrenches and tighten the tool holders with recommended torque values. Proper clamping ensures stable tool performance and reduces the risk of tool runout or vibrations.
Coolant and Tool Protection
Regularly check the coolant for correct concentration and ensure it provides adequate corrosion protection. Corrosion can compromise the integrity of the tool.
Avoid Leaving Tools: Don’t leave tools out of their proper place for extended periods, especially if they are exposed to harsh environments. Such conditions can lead to rust and premature wear.
How Does the FMB Face Mill Holder Process Work?
Fasten the workpiece to the table, usually using a vice. The workpiece should always be in the center of the vice to: ensure a uniform clamping force, prevent the workpiece from moving, and ensure that the cutter can cut the top surface of the work in its entirety. The workpiece may also require the use of parallels to ensure the work is not too far in or out of the vice clamp. Parallels must be used for this adjustment to make sure the work is level with the machine bed.
The level of the bed in relation to the cutting head must also be adjusted in the Z-direction to make sure the cutting head removes the right level of material. If adjustable, the spindle must be set perpendicular to the workpiece.
Set the feed rate and spindle speed for the desired application before machining. The feed rate and spindle speed will depend on the material being cut, the depth of the cut, the width of the cut, and the size and material of the milling cutter. As a rule of thumb, the more material is removed, the harder the material, or the larger the cutter, the slower the feed rate and spindle speed.
The final step is to carry out the machining. For a Computer Numerically Controlled (CNC) machine, once the G-code instructions have been uploaded to the milling machine, the machine can operate independently of the operator. For manual milling machines, the operator will position the tool in line with the work and set the feed speed and spindle speed. The machine can then cut the top face of the workpiece at the desired speed.
Certifications
Our Factory
Dezhou Newrgy Machinery Co., Ltd. is a CNC machine tool manufacturer with fixed assets of 10 million yuan. The company has about 50 employees, including 5 engineers and 10 college graduates. The company covers an area of 5000 square meters, including 4000 square meters of workshop area. The company has more than 50 sets of advanced production and testing equipment, and hopes to cooperate with more customers for common development and mutual benefit.
FAQ
We're well-known as one of the leading fmb face mill holder manufacturers and suppliers in China. Please feel free to wholesale high quality fmb face mill holder at competitive price from our factory. For more information, contact us now.
