What is ER Collet?
ER Collets are an essential component in the world of precision machining and tooling. These cylindrical devices are designed to grip and hold cutting tools, drills, and other similar equipment securely in place, ensuring optimal performance during operation. With their unique design, ER Collets provide a high level of concentricity, which translates to more accurate and efficient machining processes.
Advantages Of ER Collets
Versatility
Suitable for a wide range of machining operations, from milling to turning.
High Precision
Designed to minimize tool runout, ensuring accurate machining results.
Durability
Crafted from high-quality materials, ER collets are built to last, resisting wear and tear.
Safety
Secure clamping reduces the risk of tool ejection, enhancing operational safety.
Broad Clamping Range
Can accommodate tools of various diameters, reducing the need for multiple collet sizes.
Even Force Distribution
Provides a consistent grip, preventing tool slippage during high-torque operations.
Cost-Efficient
Their longevity and adaptability lead to fewer tool replacements and reduced downtime.
Easy Identification
The numbering system allows for straightforward size determination, simplifying tool selection.
What Is a ER Collets Composed Of?
Collet Body: This is the primary component of the collet. It is typically cylindrical and provides the housing and structure for the other parts of the collet.
Tapered Base: Collets typically have a tapered shape, which allows them to be inserted into tapered bores or spindles. This feature helps ensure a tight and secure fit as well as allows an even and strong force to be applied to the workpiece or tool. The tapered base also allows the collet to be centered in the pocket, allowing the collet to achieve greater accuracy than chucks.
Split Design: Collets are generally split into multiple segments. This feature allows them to expand or contract to accommodate workpieces of various diameters. With the split design, the pressure exerted by the collet is spread evenly throughout the circumference of the workpiece.
Grooves and Serrations: The inner surface of the segments or fingers of collets typically feature serrations or grooves. These can help improve grip and prevent the workpiece from slipping. In turn, this reduces the chances of the workpiece slipping during machining.
Clamping Mechanism: Collets are known for their reliable and strong clamping ability. A drawbar, collet closer or other manual or powered device may be used to bring the collet segments together and grip the workpiece tightly.
Durable Material: Collets are made from steel, aluminum or other hardened and precision-ground materials. This helps ensure that the collets withstand wear and tear as well as maintain their dimensions over time and extended usage.
Collet Nut: This component is threaded into the collet, holding it in place and providing additional clamping force.
Collet Opening or Bore: This is the central opening within the collet body where the workpiece or tool is inserted. The size and shape of the bore correspond with the size and shape of the workpiece or tool being held.
Benefits of Using ER Collets
One of the primary benefits of using ER Collets is their remarkable flexibility. This flexibility is evident in their ability to adapt to various tool sizes, reducing the necessity for custom jobs or multiple toolholding systems. By accommodating a wide range of diameters, a single set of ER Collets can handle diverse tasks, streamlining operations and improving workflow efficiency. This adaptability not only saves time but also reduces the costs associated with purchasing and maintaining multiple collet sets. Additionally, the reduction in transitioning time between different tool sizes enhances productivity and operational efficiency.
In addition to flexibility, ER Collets are known for their high-precision clamping capabilities. The design of ER Collets ensures that the tool is held securely and concentrically, minimizing runout and increasing the accuracy of the machining process. Runout, or the slight deviation of the tool from its central axis, is a critical factor in machining precision. By minimizing runout, ER Collets ensure that tools cut evenly and precisely, leading to higher quality machined parts. The resulting precision is critical for producing high-quality parts with tight tolerances. Reliable operational results are a hallmark of ER Collets, which is why they are favored in industries where precision and quality are non-negotiable. The consistent and repeatable accuracy of ER Collets supports the manufacture of complex components that meet stringent specifications.
What Are The Sizes Of ER Collets?
ER8
Used for very small tools, with diameters ranging from 0.5mm to 5mm.

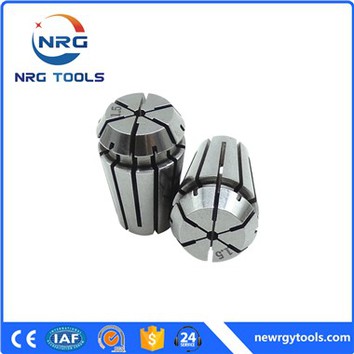

ER-11
Suitable for tools with diameters between 1mm to 7mm.
ER-16
A versatile size, accommodating tools ranging from 1mm to 10mm.
ER20
Designed for tools with diameters between 1mm and 13mm.
ER25
Fits tools ranging from 1mm to 16mm.

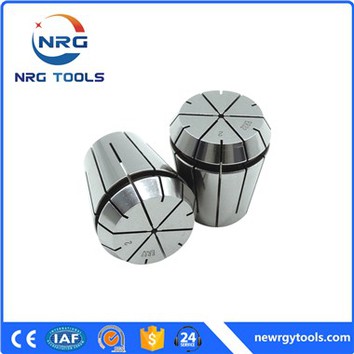

ER-32
A popular choice for many machinists, this collet can hold tools between 2mm and 20mm.

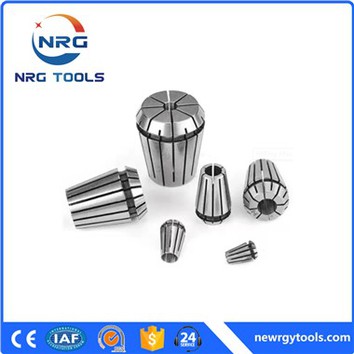

ER40
Suitable for larger tools, with diameters ranging from 3mm to 26mm.
ER50
Designed for heavy-duty applications, accommodating tools between 10mm and 34mm.
Maintenance And Care Of Er Collet
Regular Cleaning
Keep the collet, collet nut, and collet chuck clean and free from debris. Dirt and chips can affect clamping precision and performance.
Inspection
Regularly inspect the collets for wear and damage. Replace any collets that show signs of cracking, wear, or deformation.
Lubrication
Lightly lubricate the threads of the collet nut to ensure smooth tightening and prevent galling.
Proper Storage
Store collets in a clean, dry environment to prevent corrosion and damage.
How ER Collet Work?
The tapered collet base is made to fit into the collet pocket of the collet chuck body. The tapered design of the collet base and collet pocket allows the collet to be centered in the pocket as it is pushed in by the collet nut during setup. This centering effect enables the collet to achieve a high degree of accuracy (concentricity); much more than drill chucks and side-lock style holders.
As the collet is pushed into the pocket by the collet nut, the slots in the collet allow the I.D. bore to collapse and apply clamping pressure to the cutting tool shank. The result is a very strong and rigid clamping force on the cutting tool. Since the collet base is tapered to match the collet pocket, tool runout (T.I.R.) is reduced.
Collets are a high-precision wear component of a tool holding system and require maintenance to ensure accuracy. First, it’s important to remember that collets are the softest component in a collet-based tool-holding system assembly and are designed to wear out.
The machine spindle is harder than the tool holder (a.k.a. collet chuck) that fits into the spindle, so any wear between these two components will mostly occur to the collet chuck. That’s good, as it protects the spindle from expensive maintenance. Collets are softer than both the collet chuck body and the cutting tool, so any wear forces between these items will mostly occur to the collet. Since collets are generally the least expensive component in a collet chuck tool holding system, it is preferred that the collets wear out before the other components.
Worn-out collets will not achieve the same level of accuracy and rigidity that newer collets can provide. The result is more chatter when cutting workpieces, less accuracy, and shorter cutting tool life. A good rule of thumb is to replace collets every 4-6 months to maximize the performance of your tooling. Again, collets are designed to wear out and are generally the least expensive component in the system. It is much less expensive to replace the collets as opposed to prematurely wearing out cutting tools.
What Is a ER Collet Used For?
5C Collets
These collets typically have three fingers or segments and external and internal threads. They are highly versatile and are used to hold cylindrical stock. You can find them in various applications, such as grinding and machining, as well as in lathes and mills for metalworking.
R8 Collets
R8 collets are internally threaded for use in mills. With a spindle taper designated R8, these collets are designed to fit directly into the machines without chucks.
Spring Collets
Also known as elasticity return (ER) collets, spring collets are typically used in CNC machining but can also be used in turning and grinding applications. These collets use a spring to grip the workpiece or tool inserted into its opening.
Emergency Collets
As its name implies, the emergency collet is used in “emergency” situations wherein a specific collet configuration is needed but unavailable. You can bore an opening into an emergency collet that’s the exact size and shape you need, making it ideal for urgent repair or maintenance needs.
Er Collet Design
It is a design concept of an ER collet system composed of a nut located on the body shaft and an ER body shaft inserted into the nut.
Because an end mill or router bit may deform nut bearings, the end mill or router bit is inserted with the nut already in place onto the collet.
It is possible to damage the collet by inserting the cutting end of a tool into it.
To secure the tool into place with the collet system, the tool shank is first inserted, and the nut is then tightened around the tool shank, giving the user a good hold on the tool, and the tool is well held in place.
It is possible that the nut would contact a wide surface area of the collet when it is touching the front nose. That is to say; it would exert a powerful clamping force on the tool shank when it touches the nose.
With additional features such as hard touch coating, heat shrinking, anti-friction coating, and thermal shrinking, you can choose an ER collet that best suits your needs.
With the addition of a hard-touch coating, corrosion protection, water resistance, surface finish quality, and accuracy are improved during the long runout.
In addition to the existing collet system, thermal shrinking gives it an advantage. The rigid clamping of tools utilizes the thermal expansion and shrinkage phenomenon.
The revolutionary double-piece friction mechanism used in ER-collet nuts allows it to perform angular and radial self-centering.
Due to its unique extractor teeth design, it can spin faster at high speeds and exerts a powerful grip force about 50-100% higher than common nuts.
