A vise is a general-purpose fixture used to hold workpieces. It is installed on the workbench to clamp the workpiece stably and is an essential tool in the fitter workshop. The turntable-type clamp body can rotate to rotate the workpiece to the appropriate working position.
The vise is an essential tool for a fitter, and it is also the reason why the name of the fitter comes from, because most of the work of the fitter is done on the vise, such as sawing, filing, chiseling, and assembling and disassembling parts. Installed on the fitter bench, the width of the jaws is used as the calibration specification. Common specifications range from 75mm to 300mm. The purpose of the bench vise: It is installed on the workbench to clamp the workpieces stably. It is an essential tool in the fitter workshop.
The vise is composed of a clamp body, a base, a guide nut, a screw, a jaw body, etc. The movable clamp body slides with the guide rail of the fixed clamp body through the guide rail. The screw is mounted on the movable clamp body, can rotate, but cannot move axially, and cooperates with the screw nut installed in the fixed clamp body. When the handle is shaken to rotate the screw, the movable clamp body can be driven to move axially relative to the fixed clamp body to clamp or relax. The spring is fixed on the screw with the help of a retaining ring and a cotter pin. Its function is to enable the movable clamp body to withdraw in time when the screw is relaxed. The fixed clamp body and the movable clamp body are each equipped with steel jaws and fixed with screws. The working surface of the jaws is patterned with cross patterns to prevent the workpiece from slipping after being clamped. The jaws are hardened by heat treatment and have good wear resistance. The fixed clamp body is mounted on the swivel base and can rotate around the axis of the swivel base. When turned to the required direction, pull the clamping handle to tighten the clamping screw, and then the fixed clamp can be tightened under the action of the clamping disc. Tighten the clamp body. There are three bolt holes on the swivel base for fixing with the vise.
The specifications of the vise are expressed by the width of the jaws, including 100mm, 125mm, 150mm, etc. A vise is a general-purpose fixture used to hold workpieces. There are two types of commonly used clamps: fixed and rotary. According to appearance and function, there are two types: with anvil and without anvil. Its specifications are expressed by jaw width. Common specifications include 100mm, 125mm, 150mm, etc.
product description
Professional, Attentive, Focused
QKG vise
1. Quenching and hardening: overall hardness HRC58-62, the unique structure enables the workpiece to be firmly clamped.Verticality and parallelism are approximately +0.003mm.
2.Stable clamping: V-shaped deep groove jaws adopt a cross V-shaped mouth design to increase clamping friction and stability.
3.High precision: The surface is finely ground, and the accuracy of each working surface is 0.003mm. A pressure plate can be used to make it stable and low-fixed on the workbench. The surface roughness reaches 0.8UM.
4.Stable clamping: can be used to measure parts at various angles. When performing side processing, the slider cannot move.
5.Used for surface grinders, milling machines, EDM and wire cutting machine,tools to complete the processing of angle planes, grooves, planes and oblique holes.

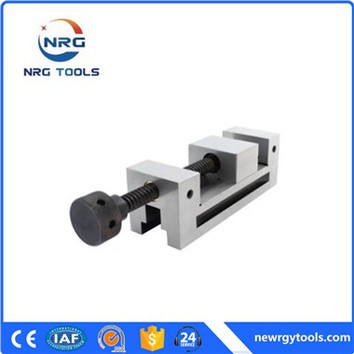

QGG vise
1. Use high-quality steel 20CrMnTi,After quenching and hardening, the working surface hardness HRC is obtained using a 150KG load and a diamond cone press. Hardness can reach 58-62.
2.Cross V-shaped mouth design：The jaws adopt a cross V-shaped mouth design, which is beneficial to the clamping strength and stability of round workpieces.
3.Versatile application， high precision：When working, whether standing horizontally, vertically or flatly，Maintain high precision
Simple structure, easy operation, large clamping force, high precision and wide adjustment range.
4.Strong versatility and wide application：The unique structure enables strong clamping of the workpiece. The verticality and parallelism are about ±0.005mm.The detachable handle can speed up the tightening work. The clamp body and screw rod are quenched.
GT vise
1.Selected high-quality alloy steel polished：Selected 20CRMNTI, polished, made of high-quality alloy steel forged, high-temperature
carburizing and quenching, long service life.
2.Fine grinding of guide rail surface：The guide rail surface is finely ground, flat and smooth, with high precision. The distance between the movable jaw and the rail surface is not greater than 0.1MM, and there will be no offset during movement.
3.When multiple units are used at the same time, the error is less than 0.01MM, the parallelism is 0.005MM/100,and the verticality is 0.005MM.
4.High-precision anti-warping jaws：Stainless steel jaws with a hardness of up to 58-62MM. The jaws are designed in depth to effectively increase the force during clamping and ensure stable operation.
5.Durable industrial grade vise;High fitting accuracy, enlarged and thickened base design, more stable fixation,surface spray treatment, beautiful and rust-proof.
QM vise
1.Selected high-quality steel 20CrMnTi.
2. The parallelism of the two jaws is 0.025mm/100mm, and the perpendicularity of the two jaws to the guide rail surface is 0.025mm.
3. When the movable jaw moves horizontally, the hemispherical ball above it will have a vertical downward pressure, so the clamped workpiece will not float up.
4. The jaw opening can be changed in four directions
5. There is a thrust bearing at the rear end of the screw, making it flexible in operation.
6. The product is the main accessory of drilling machines and grinding machine tools. It is especially suitable for processing precision components.
How to Use vise
When the bench vise is installed on the vise table, the working surface of the fixed vise body must be outside the edge of the vise table to ensure that when clamping a long workpiece, the lower end of the workpiece is not obstructed by the edge of the vise table. The middle hole of the swivel base should be facing inward, so that the bench can bear more force and avoid crushing the bench.
After the vise is installed on the vise table, the operator's height when working is more suitable. Generally, the height of the jaws is exactly flush with the elbow, that is, the elbow is placed at the highest point of the vise and the fist is half-clenched, and the fist is just touching the chin. The length and width will depend on the job
Routine Maintenance of Vise
When installing a bench vise, part of the jaws that fix the vise body must be outside the edge of the vise to ensure that when clamping a long workpiece, the workpiece is not hindered by the edge of the vise.
The bench vise must be firmly fixed on the vise table, and the three compression screws must be tightened so that the vise body does not loosen during processing. Otherwise, the vise will be damaged and processing will be affected.
When clamping the workpiece, only use hand power to pull the handle. Never use a hammer or other sleeve to pull the handle to avoid damage to the screw, nut or clamp body. Screws, nuts and other sliding surfaces need to be kept clean and lubricated regularly.
Do not hit the workpiece on the jaws, but on the platform where the jaws are fixed, otherwise the jaws will be damaged.
Precautions for use
When clamping the workpiece, it must be properly tightened. The handle can only be tightened by hand, and no other tools are allowed to apply force.
When working with force, the force should be directed toward the fixed clamp body as much as possible.
Do not knock on the movable clamp body or smooth surface.
The movable surfaces such as screws and nuts should be cleaned and lubricated frequently to prevent rust.
